精密零部件测量设备
Precision Component Metrology System
精密零件测量仪,主要针对加工后的精密零件的二维尺寸进行快速测量,具备自动对焦、自动捕捉原点,像素拼接,零件识别等多项出色功能。减少人为测量误差,提高检测测量效率。
The Precision Component Metrology Systemspecializes in rapid 2D dimensional measurementof machined precision components,equipped withmultiple advanoed functions including auto-focusing,automatic origin capture,pixe stitching,andcomponent recognition.This system significantlyreduces human measurement errors while enhancinginspection eficiency through automated processes.

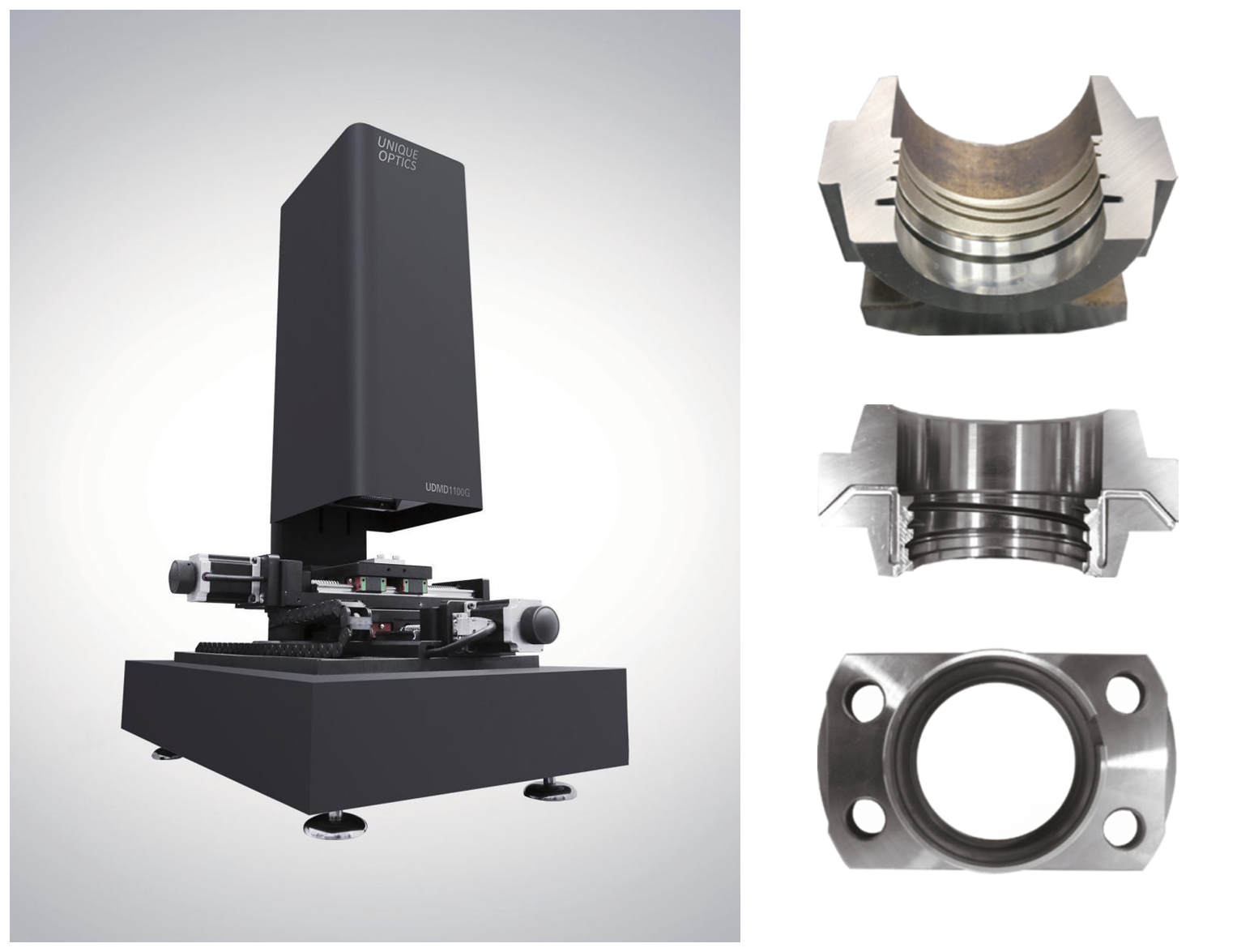

精密零件测量仪
精密零件测量仪,主要针对加工后的精密零件的二维尺寸进行快速测量,具备自动对焦、自动捕捉原点,像素拼接,零件识别等多项出色功能。减少人为测量误差,提高检测测量效率。
Precision measuring instrument components, mainly for the rapid measurement of two-dimensional dimensions after machining precision parts with auto focus, auto-origin capture, pixel mosaic, part identification and many other outstanding features. Reduce human error measurement, improve the detection efficiency measurement.
参数 Parameter | UDMP1010G | UDMP2020G | UDMP3030G |

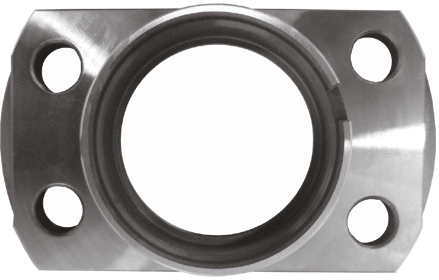

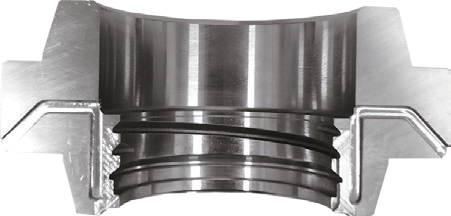

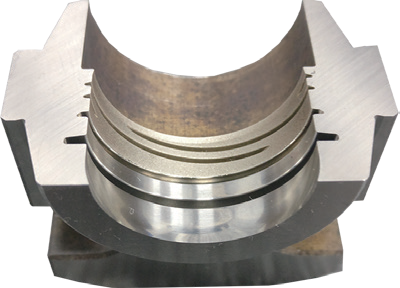

测量物 Measuring Object | 金属零件Metal Parts | ||
拍摄芯片 Photographing Chip | 1000万像素 黑白Coms 10 Million Pixels Black And White Coms | ||
受光镜头 Light Receiving Lens | 双远心镜头 Bi-Telecentric Lens | ||
照明 Lighting | 同轴光 Coaxial Light | ||
测量精度 Measurement Accuracy | 0.005mm | ||
测量范围 Measuring Range | 145 X 120 X 90 mm | 245 X 220 X 90 mm | 345 X 320 X 90 mm |
测量平台 Measuring Platform | 三维行程 Three-Dimensional Travel 100 × 100 × 100 mm | 三维行程 Three-Dimensional Travel 200× 200 × 200 mm | 三维行程 Three-Dimensional Travel 300 × 300 × 300 mm |
存储容量及输出格式 Storage Capacity And Output Format | 1000G、CSV | ||
接口类型 Interface Type | USB 2.0/3.0、千兆网 USB 2.0/3.0、Gigabit Network | ||
运行系统 Operation System | Windows | ||
软件 Software | UDC 1.0 | ||
支持语言 Languages | 中文、英文 Chinese And English | ||
电源 Power Supply | Ac 110V Or 220V 50Hz/60Hz | ||
使用环境温度 Working Ambient Temperature | +10 ~ 36℃ | ||
使用环境湿度 Working Ambient Humidity | 20~70% Rh,无凝结 20~70% Rh,No Condensation | ||
外观尺寸 Dimension | 200 X 140 X 500 mm | 300 X 240 X 500 mm | 400 X 340 X 500 mm |
