MDP180P瓶坯测量仪
    发布时间: 2019-10-15 11:30

MDP180P瓶坯测量仪，提供瓶坯全尺寸测量，包括飞边、翘曲度、字符识别、壁厚差测量。

MDP180P瓶坯测量仪

瓶坯测量仪

FAST WISE OPTICS

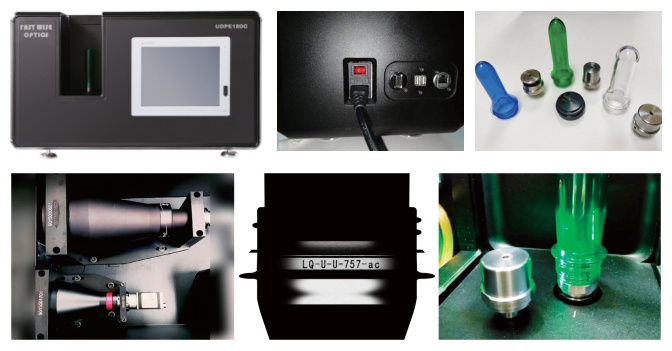

Preform Measurement Device

优越设计   Superior design


  • 瓶坯测量仪采用光学多镜片折射分段成像原理设计，采用多段平行光照射瓶身来获取整个瓶坯轮廓图像；

  • Preform measuring instrument with a multi-lens optical imaging principle refractive segmented design, multi-stage parallel light is irradiated to obtain the entire bottle preform contour image.

  • 搭载双远心镜头与平行光源提取图像轮廓，保证轮廓无变形，确保测量精度。

  • Double telecentric lens mounted parallel to the light source image contour extraction, to ensure that no deformation of the contour, to ensure measurement accuracy.

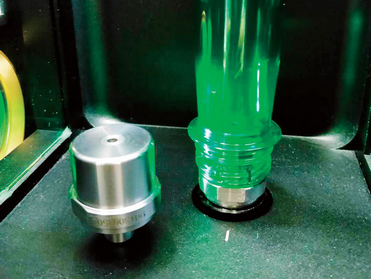

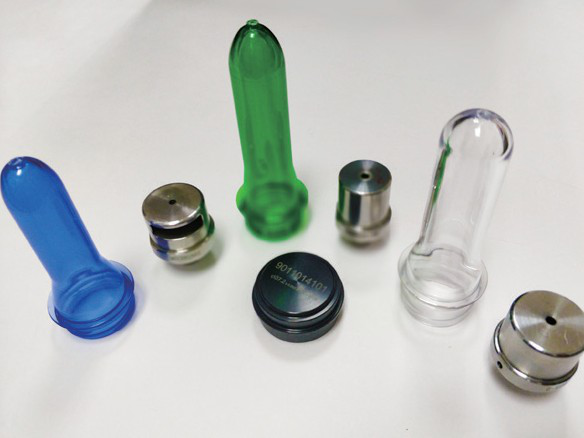

  • 测量台设计有伺服电机，测量瓶坯可进行360度旋转，可测量瓶坯翘曲度以及瓶口飞边数据，卡坯头可根据不同瓶口进行快捷更换。

  • Design of the measuring table servomotor, measuring preforms can be rotated 360 degrees to measure warpage preform and finish flash data, blank cards according to different head can finish fast replacement.

测量项目及重复精度

“T”

Thread Dia.

"E"

Neck  Dia.

“S”

Crest Width

"H"

Height of end tooth

"A" OD

Locking Ring

"D"

Distance Tamper

Band

“X"

Height of Neck Finish

“G”

Gap at Burglar Ring

"B"

Guard Ring Diameter

"T"

螺纹顶径

“E”

瓶口直径

"S"

全 螺 纹

 起始位置

"H"

全 螺 纹

结束位置

"A"

锁环直径

“D”

锁环高度

"X"

瓶口高度

"G"

防盗环

处间距

"B1"

防盗环

处直径

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm














“Z”

OD Dia.

Support Ring

Bottle Neck ID Dia.

Preform neck Circular Arc

Thread Height

Flash Detection

Concentricity

Total Height

Number Recognition

"Z"

支撑环直径

螺纹顶

端宽度

瓶口圆弧

螺纹高度

飞边

翘曲度

总高度

模号识别

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.025mm

±0.10mm

±0.05mm

—

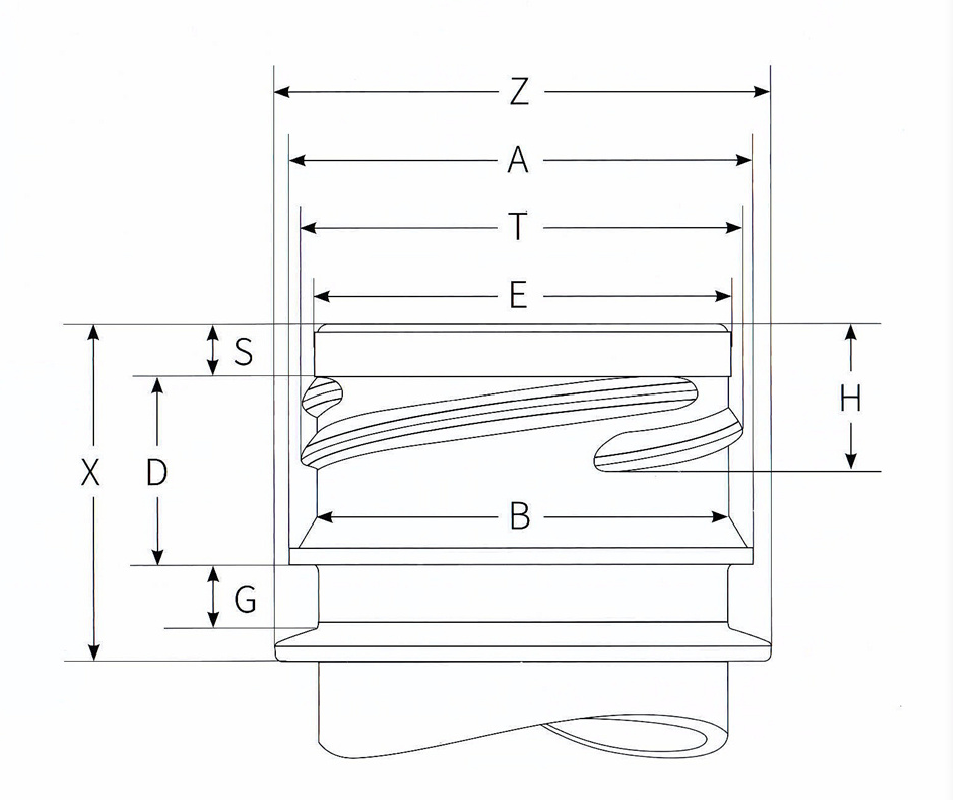

A-OD Locking Ring


H-Height of end tooth
T-Threat Dia.


D-Distance Tamper Band
E-Neck Dia.


G-Gap at Burglar Ring
Neck Dia. "G"


X-Height of Neck Finish
B-Guard Ring Diameter





Z-支撑环直径


S-起牙高度
A-锁环直径


H-末牙高度
T-螺纹顶直径


D-锁环高度
E-瓶口直径


G-防盗环间距
B-防盗环直径


X-瓶口高度



参数

Parameter

UDPD120G

UDPE180G

测量物

Measuring Object

瓶坯

Preform

拍摄芯片

Photographing Chip

1000万像素  黑白Coms

10 Million Pixels   Black And White Coms

受光镜头

Light Receiving Lens

双远心镜头Bi-Telecentric Lens

显示器

Display

12寸触摸屏

12" Touch Screen

照明

Lighting

远心平行光

Telecentric Parallel Light

测量精度

Measuring Accuracy

0.005mm

重复精度

Repeatability Accuracy

±0.01mm（飞边±0.025mm,总高±0.05mm,翘曲度±0.10mm）

±0.01mm(Burr±0.025mm,Total Height ±0.05mm,Warpage ±0.10mm）

测量时间

Measuring Duration

35 S

测量直径

Measuring Diameter

≤ Φ40mm

测量高度

Measuring Height

0~120mm

0~30mm,60~180mm

测量范围

Measuring Range

瓶坯全尺寸测量（不含壁厚、内径及螺纹角度测量）

Full-Size Measurement Of Preform

(Excluding Wall Thickness,Inner Diameter And Thread Angle Measurement)

存储容量及输出格式

Storage Capacity And Output Format

32G,Csv

64G,Csv

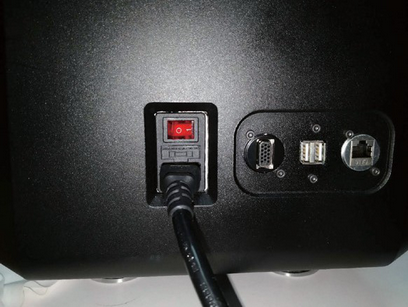

接口类型

Interface Type

USB 2.0/3.0、千兆网

USB 2.0/3.0、Gigabit Network

运行系统

Operation System

Windows

软件 Software

V 1.0

支持语言

Languages

中文、英文

Chinese & English

电源

Power Supply

Ac 110V Or 220V    50Hz/60Hz

使用环境温度

Working Ambient Temperature

+10 ～ 36℃

使用环境湿度

Working Ambient Humidity

20~60% Rh,无凝结

20~60% Rh,No Condensation

外观尺寸

Dimension

740*310*360mm

760*280*435 mm
